Pannello PC industriale touch capacitivo incorporato esterno con case posteriore completamente chiuso
Size:10.4 Inches
Motherboard:Core i5 3210M
RAM+SSD:RAM8G+SSD128G
Quantità:
Attention please, power plug ADAPTS to the destination country by default.
Due to changes in Fedex® automatic freight settlement policy, shipping fees cannot be calculated for products larger than 50 inches or weighing more than 90 kg, which will result in "Shipping not available. Your order cannot be shipped to the selected address." Get fast shipping and cost - effective quotes from Chat with us"💬Chat". We will respond promptly!
Contact us to get more information.
Panel PC industriale con touch capacitivo integrato esterno con cover posteriore in alluminio: IP65, antipolvere e impermeabile; Wi-Fi dual-band 2.4G e 5GHz; Win10
Il panel PC industriale integrato esterno è un computer industriale. È impermeabile, antipolvere e antiolio, resistente alle alte e basse temperature, a basso rumore, utilizzato principalmente per il controllo dei comandi, l'elaborazione dati, la visualizzazione di immagini e l'interazione uomo-computer.
È ampiamente utilizzato in officine di produzione, apparecchiature di automazione, apparecchiature medicali intelligenti e in altre applicazioni. Presenta le seguenti caratteristiche:
Supporta RS232/485/422, GPIO, Ethernet e altre interfacce;
Può adattarsi a Siemens e altri software di configurazione per il controllo industriale;
Qualità industriale, funzionamento stabile 7 ore su 24, basso consumo energetico;
La superficie del touch screen è in vetro temperato liscio, sensibile e preciso.
Supporta un ampio intervallo di temperatura di funzionamento da -10°C a 60°C;
Supporta sistemi Windows e Linux, Wi-Fi dual-band a 2,4 GHz e 5 GHz integrato.
Attenzione: il sistema operativo predefinito è Win10 Pro. Si prega di specificare se si desidera Win10 IOT al momento dell'ordine.
Il panel PC industriale integrato esterno è un computer industriale. È impermeabile, antipolvere e antiolio, resistente alle alte e basse temperature, a basso rumore, utilizzato principalmente per il controllo dei comandi, l'elaborazione dati, la visualizzazione di immagini e l'interazione uomo-computer.
È ampiamente utilizzato in officine di produzione, apparecchiature di automazione, apparecchiature medicali intelligenti e in altre applicazioni. Presenta le seguenti caratteristiche:
Supporta RS232/485/422, GPIO, Ethernet e altre interfacce;
Può adattarsi a Siemens e altri software di configurazione per il controllo industriale;
Qualità industriale, funzionamento stabile 7 ore su 24, basso consumo energetico;
La superficie del touch screen è in vetro temperato liscio, sensibile e preciso.
Supporta un ampio intervallo di temperatura di funzionamento da -10°C a 60°C;
Supporta sistemi Windows e Linux, Wi-Fi dual-band a 2,4 GHz e 5 GHz integrato.
Attenzione: il sistema operativo predefinito è Win10 Pro. Si prega di specificare se si desidera Win10 IOT al momento dell'ordine.
Document
Product Name | Industrial Capacitive Touch Screen Zero Bezel GA1 | ||
Screen Parameters | |||
---|---|---|---|
Size(Opt.) | 10.4/15 inches | 17/19 inches | 21.5 inches |
Resolution | 1024*768 | 1280*1024 | 1920*1080 |
Aspect Ratio | 4:3 | 5:4 | 16:9 |
Touch type | Capacitive, 10 points touch | ||
Response time | <5ms | ||
Color Depth | 8bit, 16.7M | ||
Brightness | 280cd/m² | ||
Life time | 100000h | ||
System Parameters | |||
CPU(Opt.) | Intel Core I5-3210M, Dual-Core, 2.5GHz | ||
Intel Core I5-4200U, Dual-Core, 1.9GHz | |||
Intel Core I7-8550U, Dual-Core, 4.0GHz | |||
Intel Core I5 10210U, Dual-Core, 1.6GHz | |||
RAM | 4GB-16GB | ||
SSD | 128GB-1TB SSD | ||
OS | Windows_10 | ||
Speaker | 5W*2 | ||
Interface Parameters | |||
Cable Network | RJ45*1, supports 10/100/1000M Ethernet | ||
Wireless Network | 2.4GHz&5GHz wifi, supports 802.11 a/b/g/n/ac | ||
USB Interface | USB3.0*2, USB2.0*2 | ||
Video Interface | HDMI*1, VGA*1 | ||
Audio Interface | Mic_In*1, Line_Out*1 | ||
COM Interface | RS232*2 | ||
Power Supply | AC 100-240V | ||
Environmental Parameters | |||
Operating Temperature | -10°C ~ 60°C | ||
Storage Temperature | -20°C ~ 70°C | ||
Operating Humidity | 0% ~ 90% |
Type | Weight | Dimension |
---|---|---|

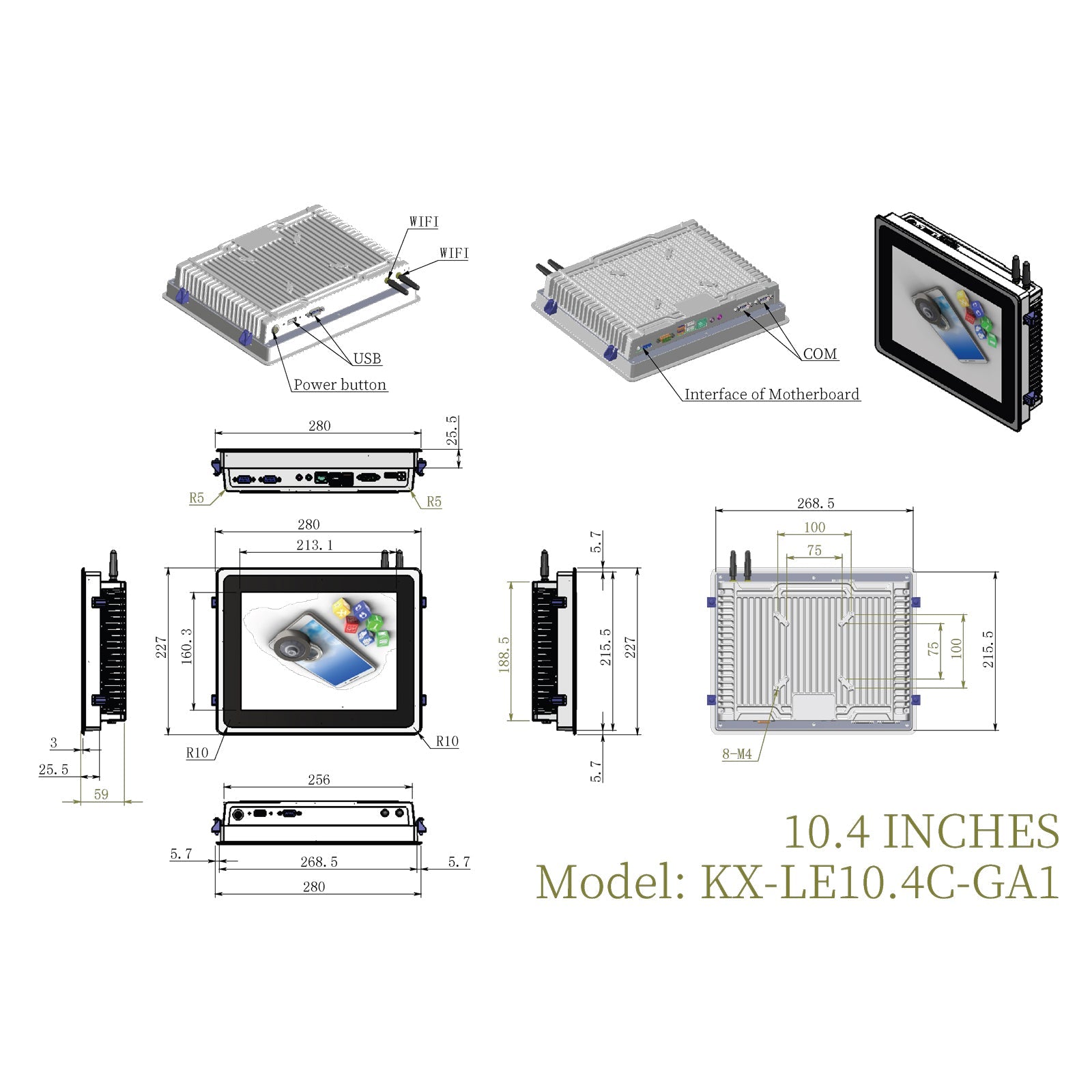

10.4" | 4KG | 39*13.5*33CM (Carton) |

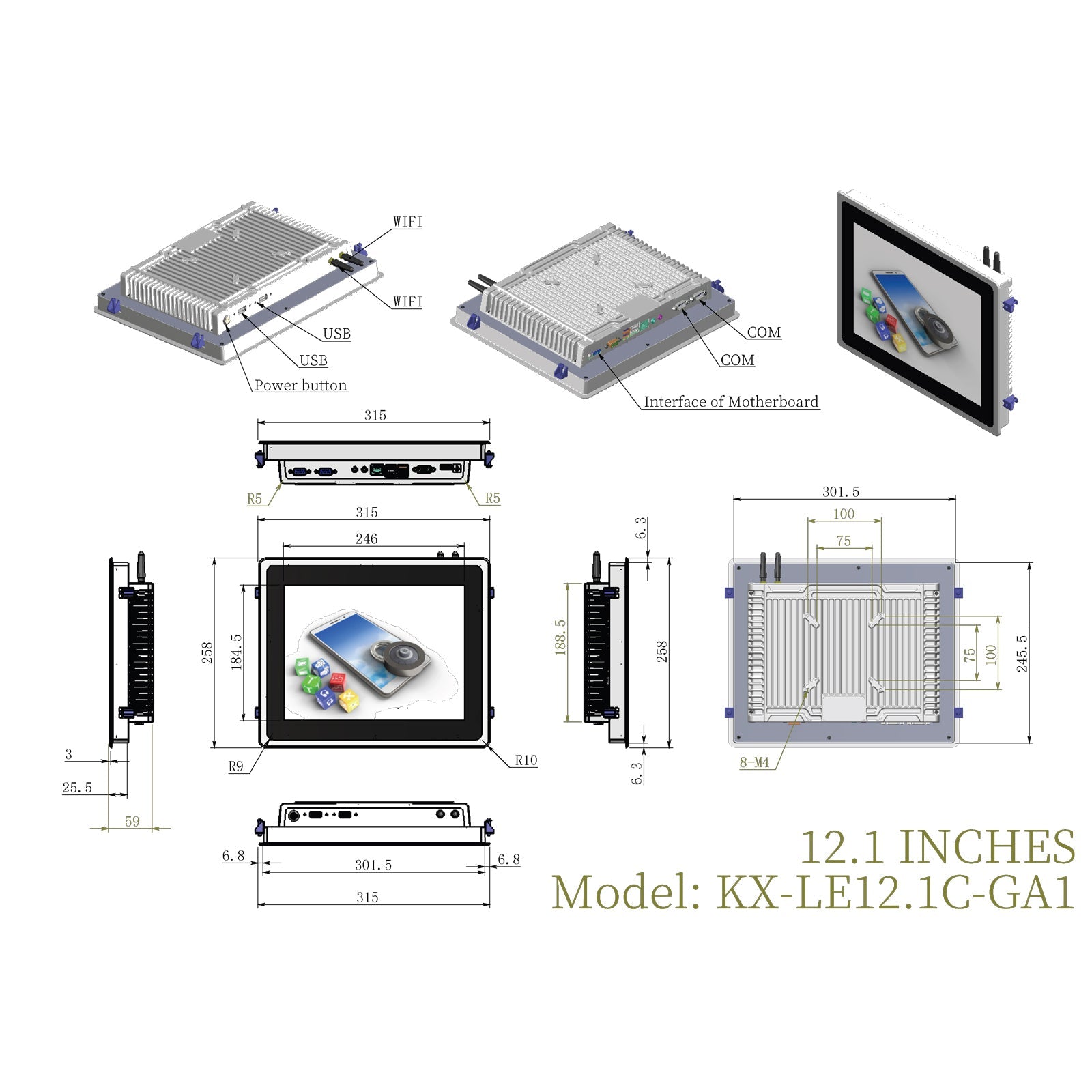

12.1" | 4.8KG | 43*13.5*35.6CM (Carton) |

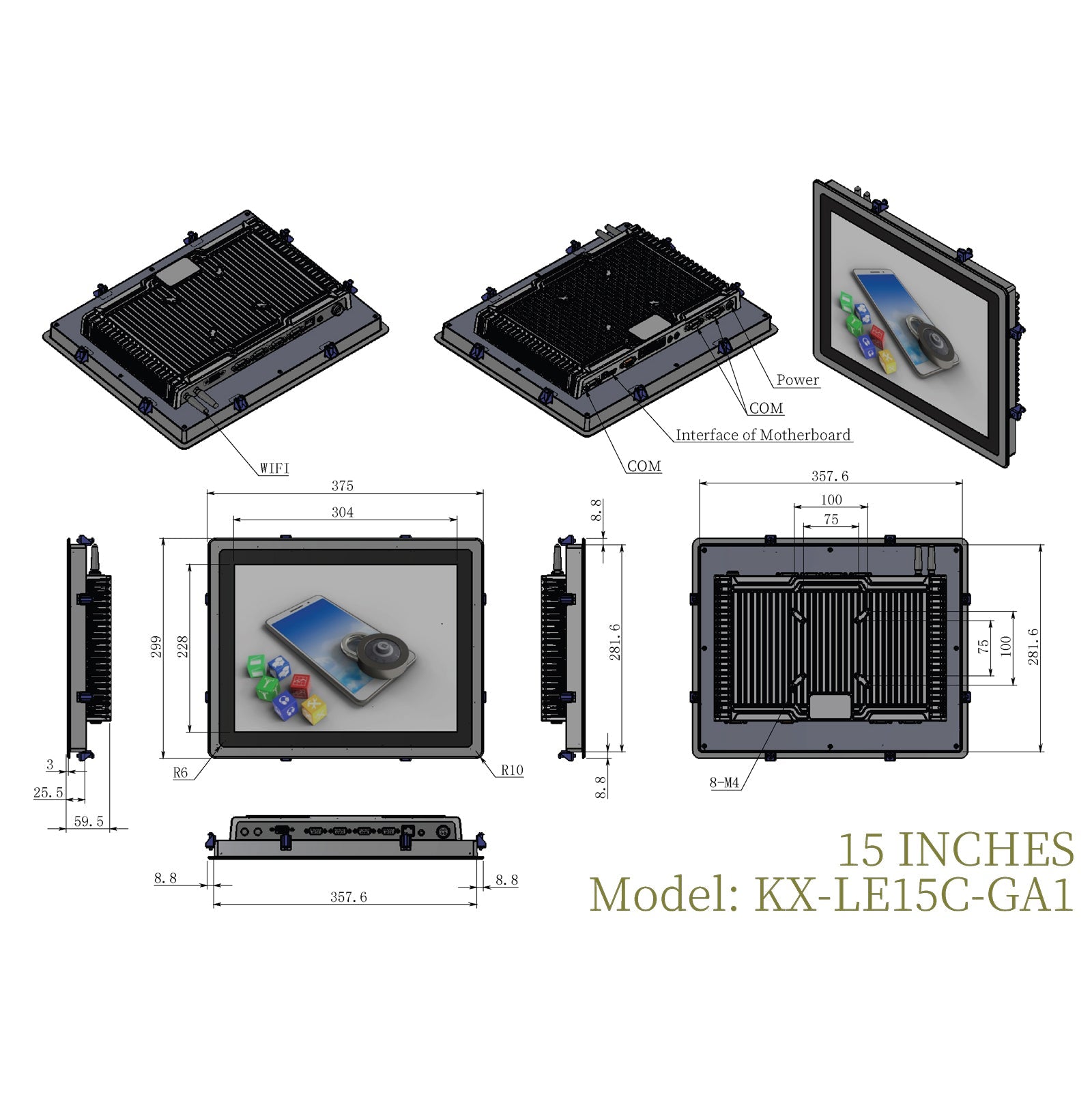

15" | 5.8KG | 46*12.5*35.5CM (Carton) |

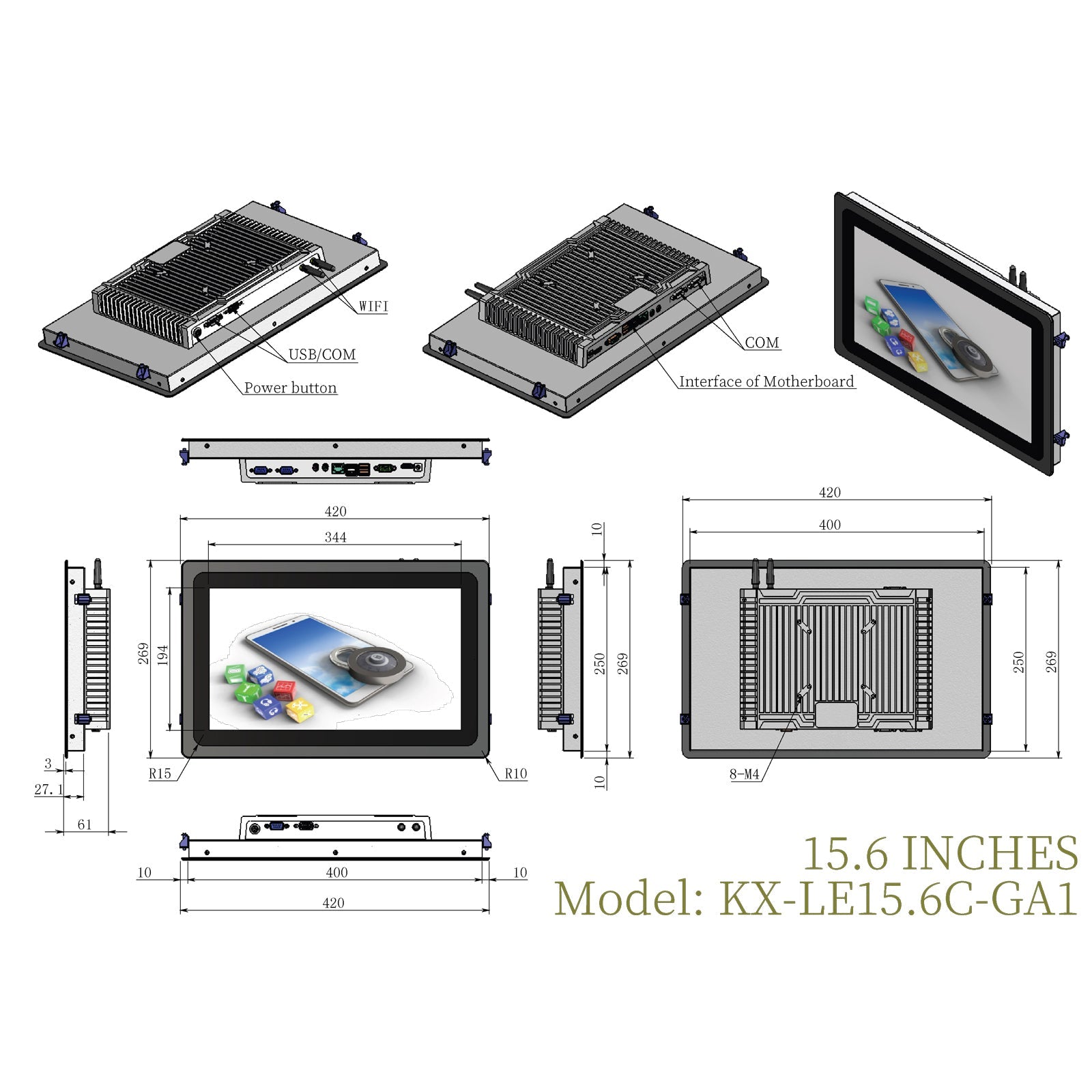

15.6" | 5KG | 56*15.5*47CM (Carton) |

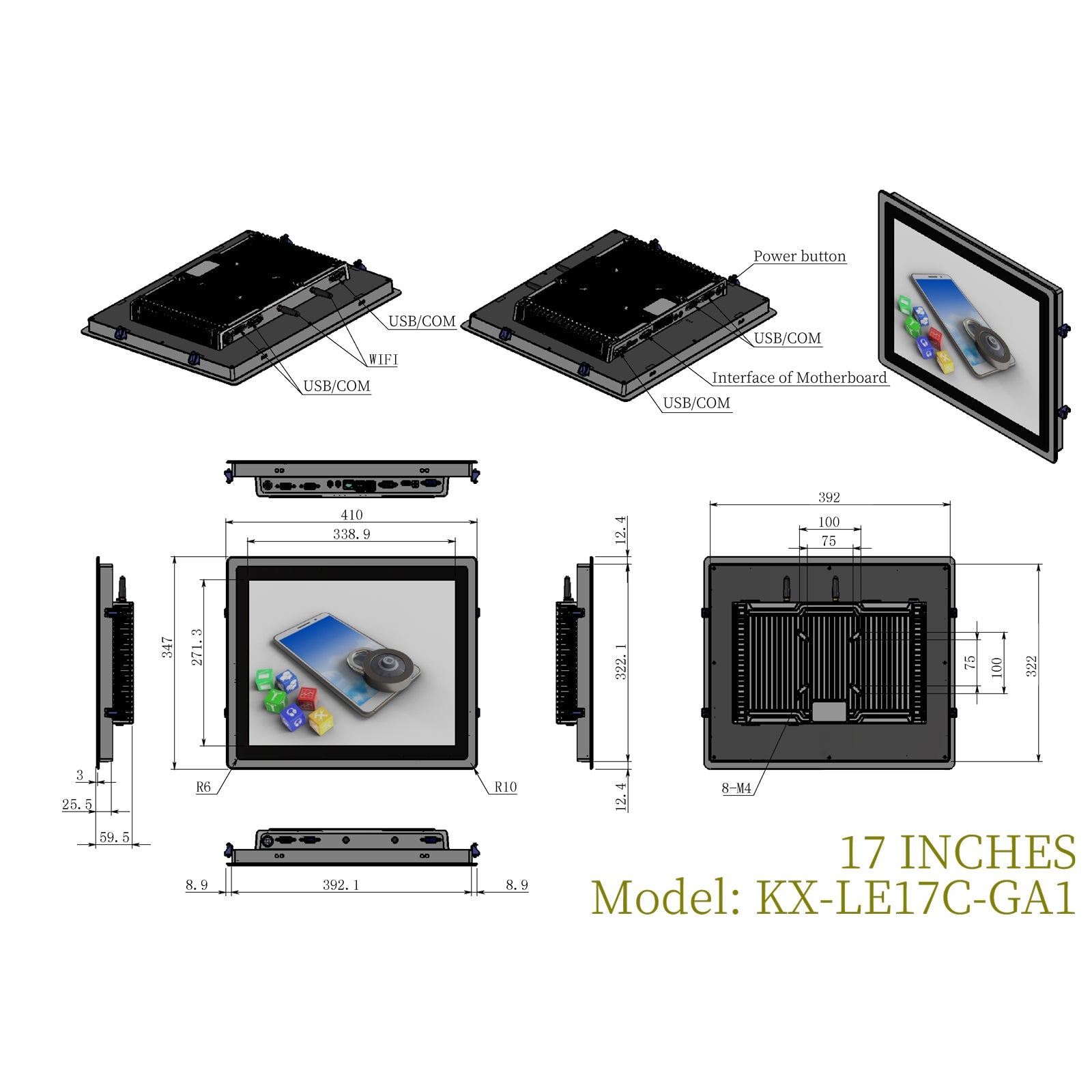

17" | 6.5KG | 49.5*12.5*40CM (Carton) |

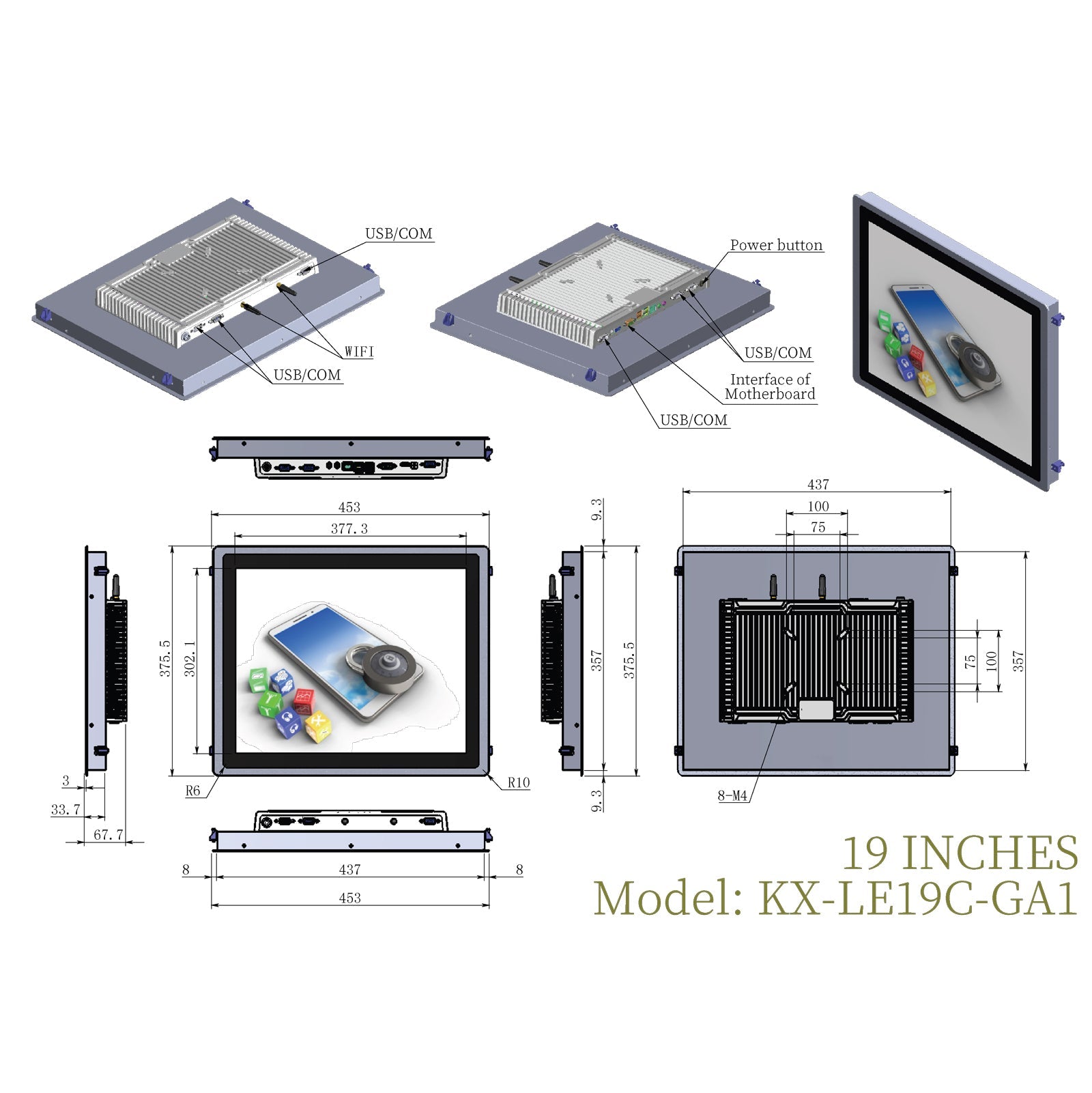

19" | 7KG | 56*15.5*47CM (Carton) |

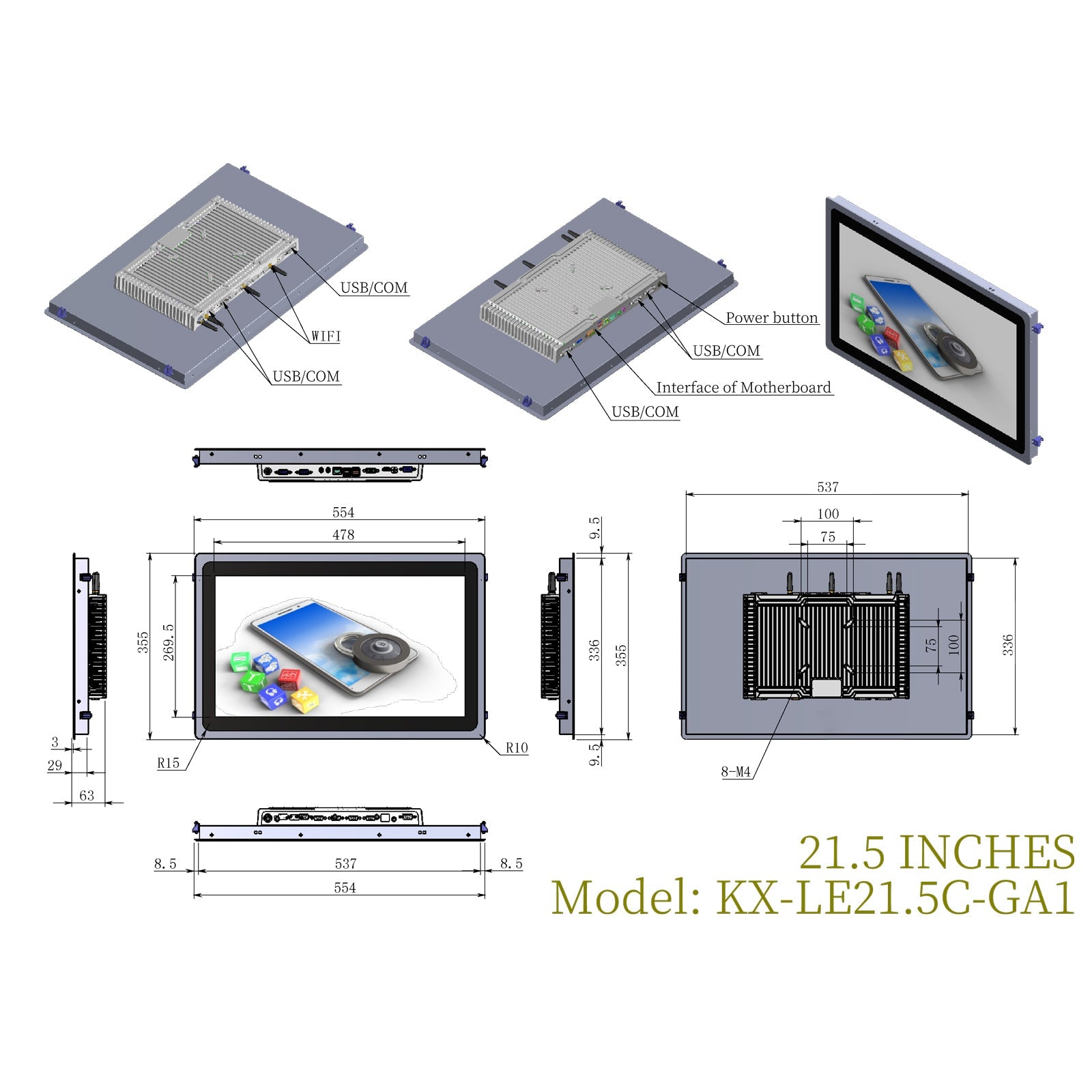

21.5" | 7.5KG | 63*14*41CM (Carton) |
